ENGINE

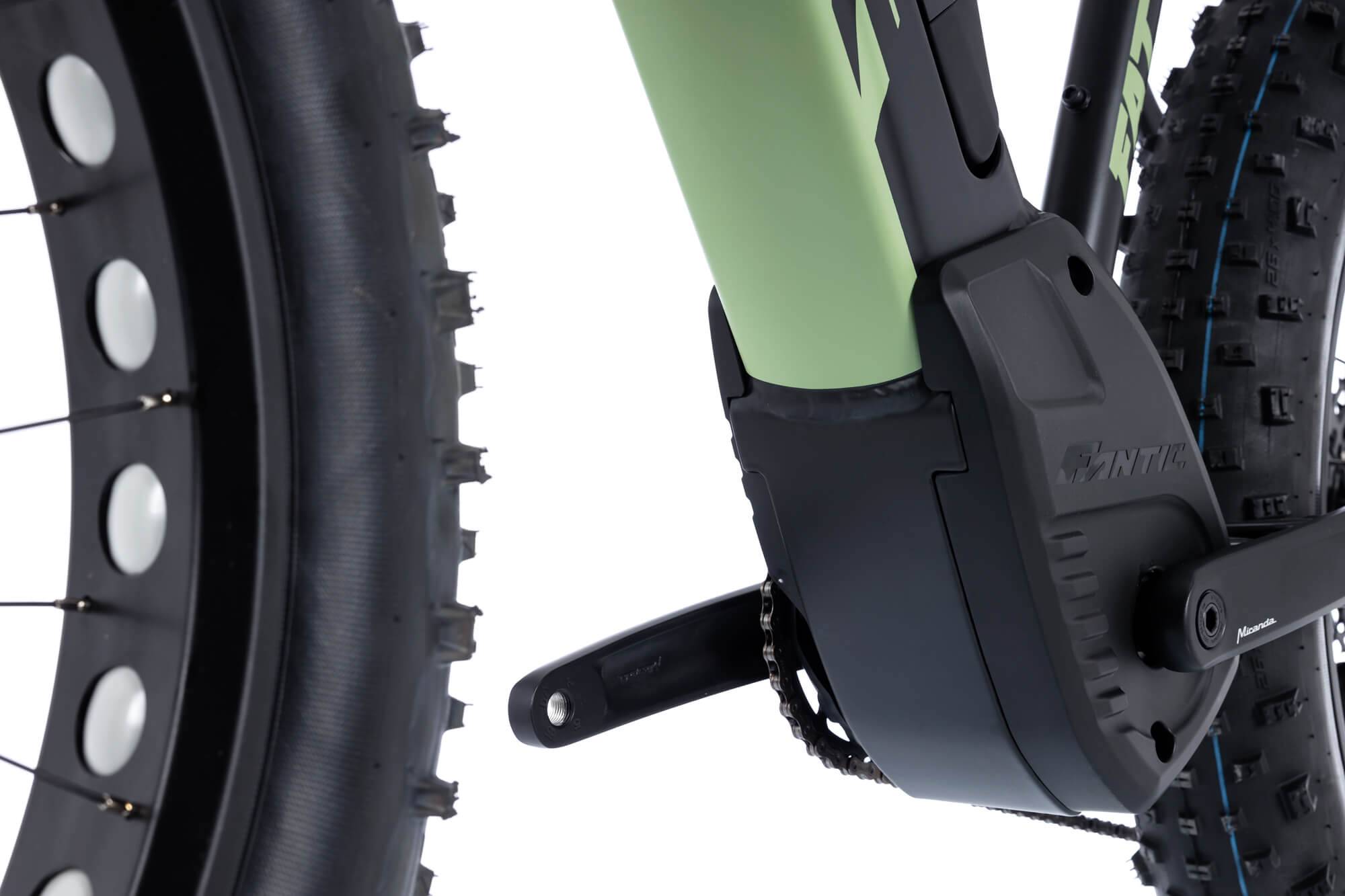

FAT SPORT INTEGRA is the result of the experience of Fantic’s history brand. The BROSE ALU motor adds power to your legs and the battery offers the maximum duration available on the market. You can control the power with a simple touch of a button and the chassis is so optimized that you feel in control in any situation giving you the most precise feeling of riding.
BATTERY
The FAT SPORT has an INTEGRATED battery, LONG RUN, with 630Wh. With this bigger battery, we have recorded up to 115 miles of range with one charge. It takes 3.5 hours to fully recharge the battery and 2.5 hours to get it up to 80% charge from zero.

Specifications
Motor: Brose ALU T 36 Volt, Max power: 250 Watt, Torque/Coppia: 70 Nm
Battery: Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display: Brose-Marquardt multifunctional display & push-assistance selection unit

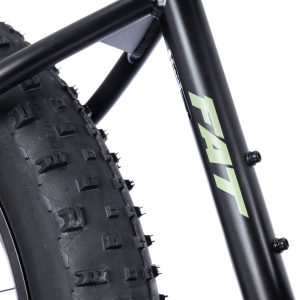

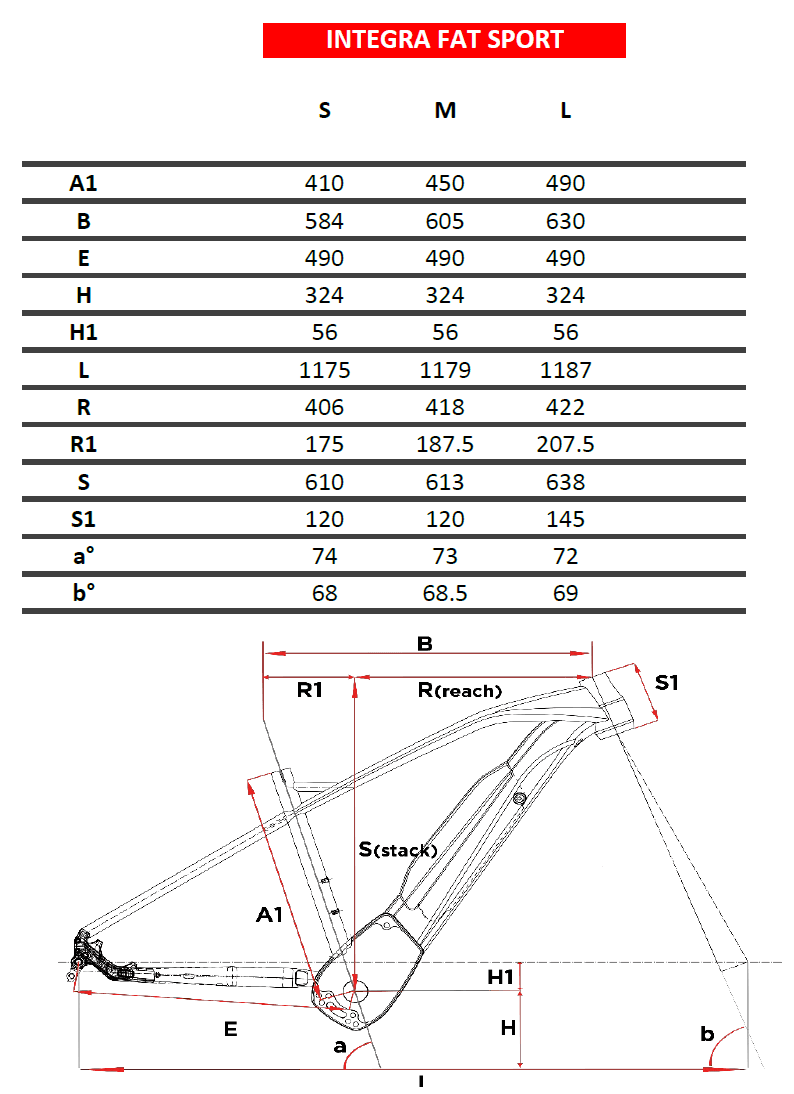

Frame: Aluminium frame, CNC parts, Sizes: S – M – L

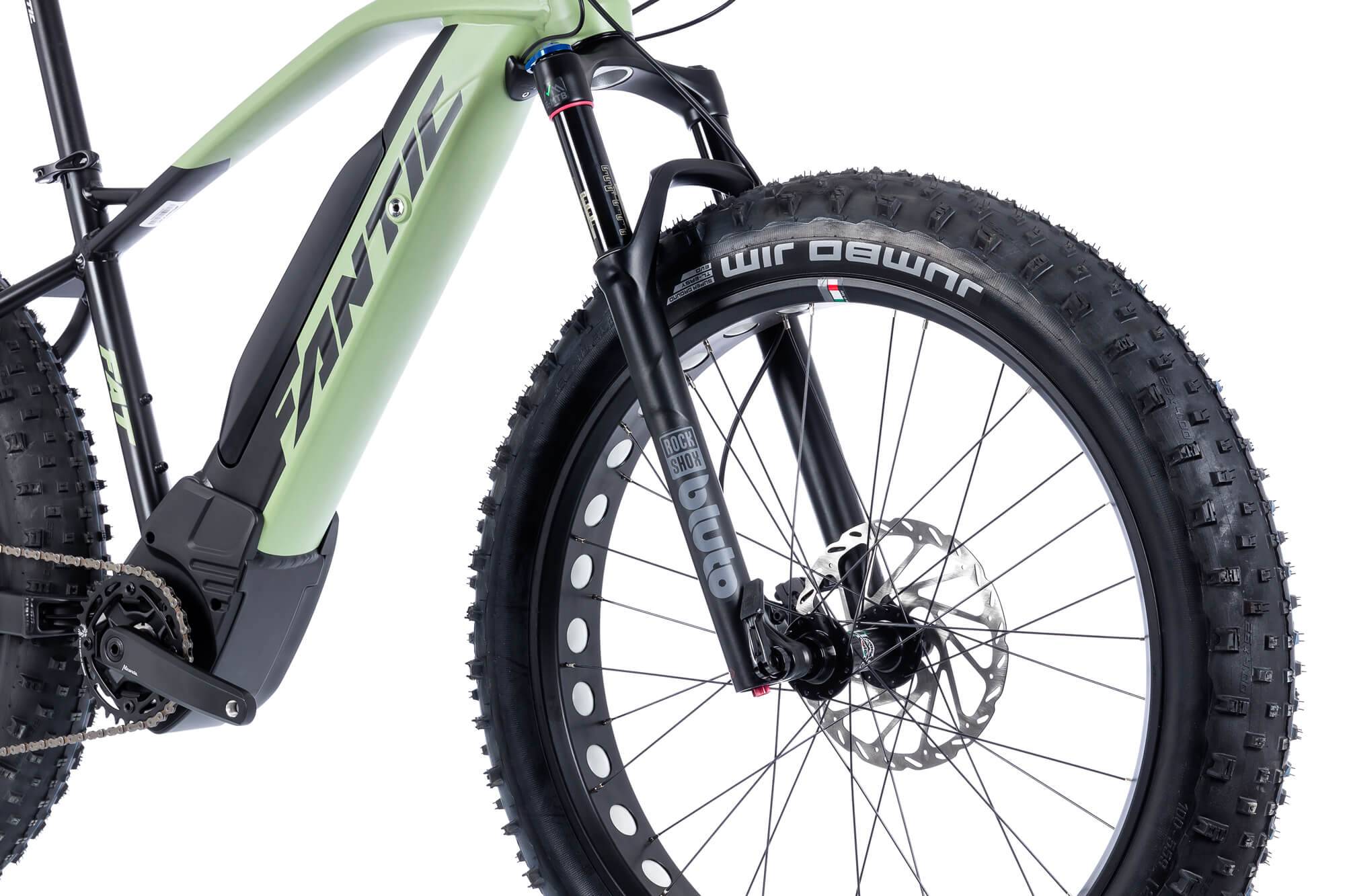

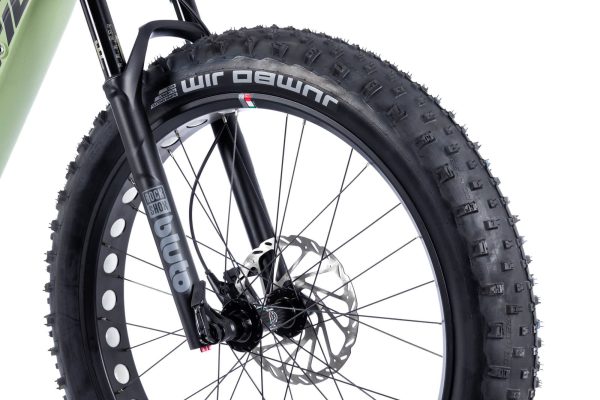

Fork: RockShox Bluto, 120mm travel

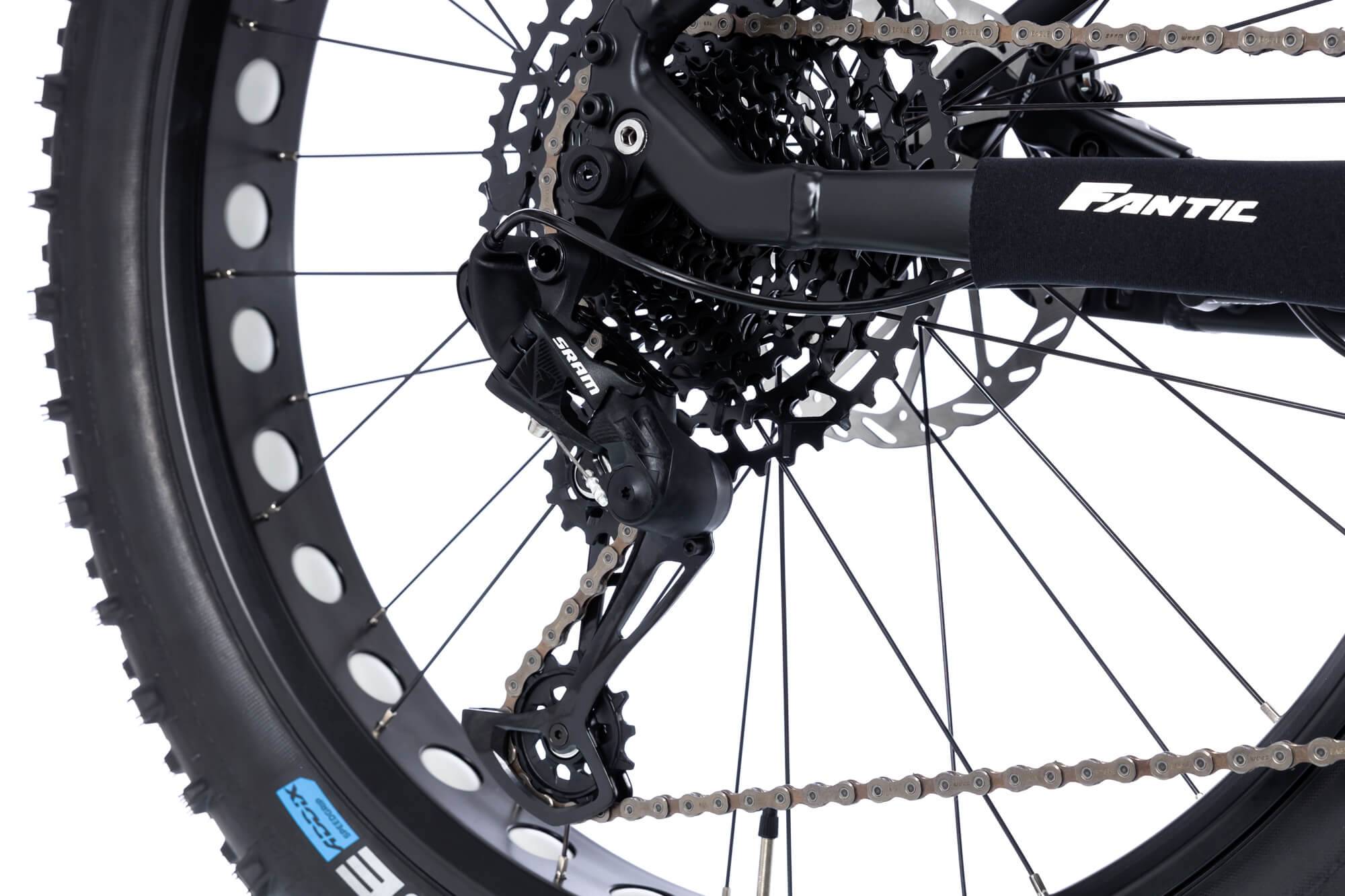

Groupset: SRAM SX E-click Eagle12v
Crankset: Miranda Delta Isis 165mm FAT-2 Asym
Cassette: Sram SX Eagle 12V 11-50
Chain: Sram SX Eagle 12V

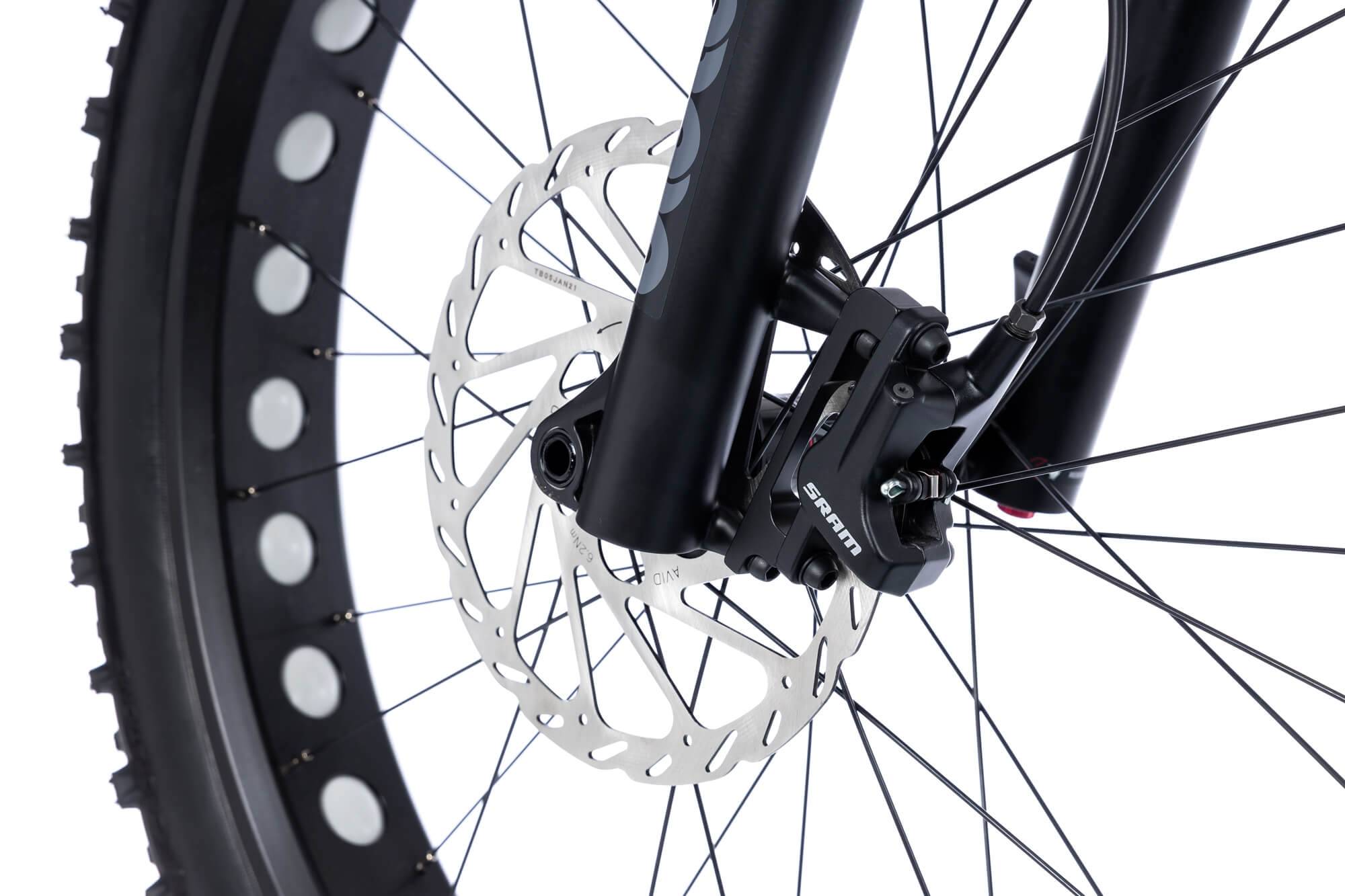

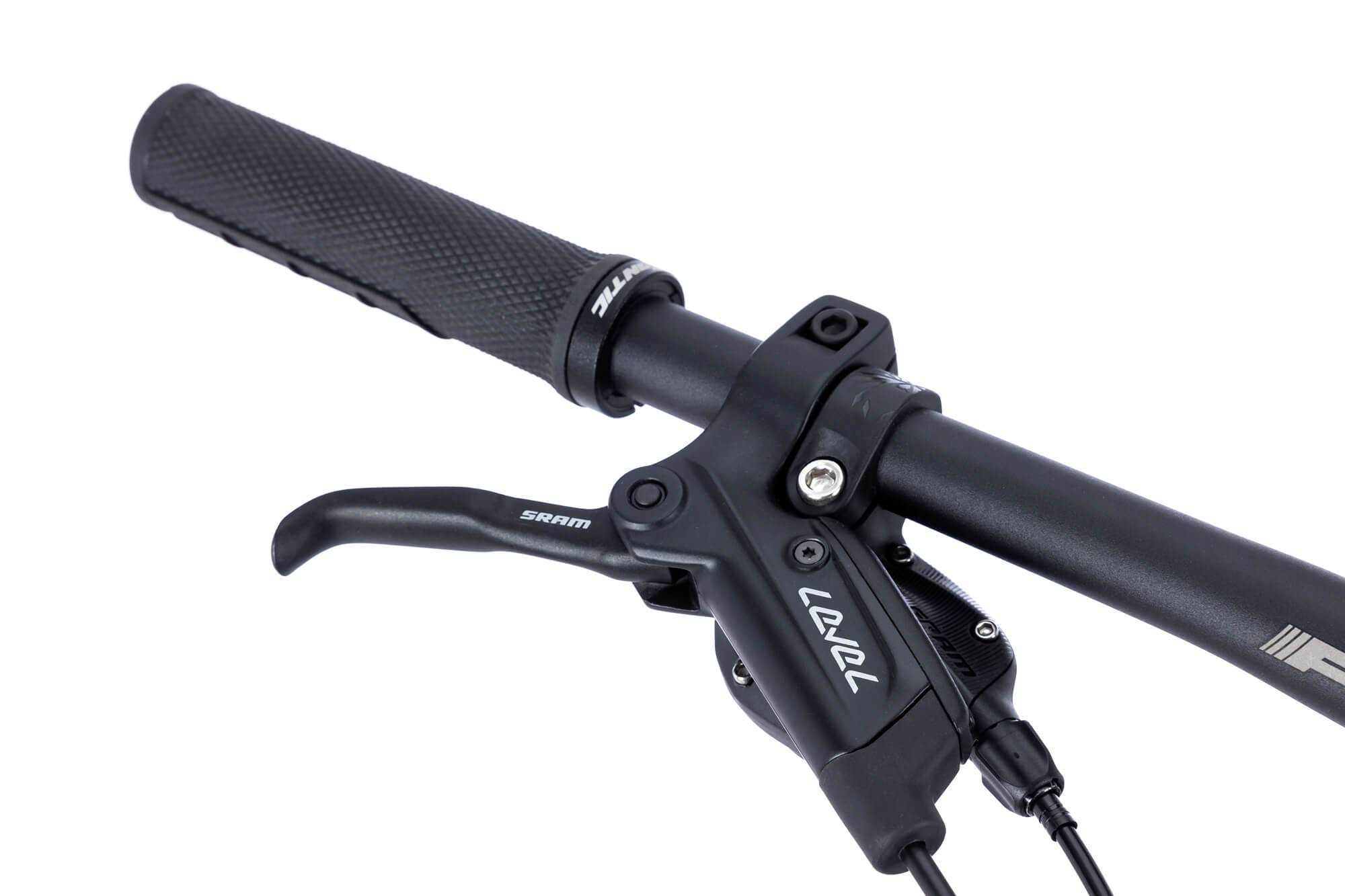

Front brake: Sram Level, 2P, Hydraulic Disc Brake, 200mm disc
Rear brake: Sram Level, 2P, Hydraulic Disc Brake, 180mm disc
Tires: Schwalbe JUMBO-JIM, 26 X 4″

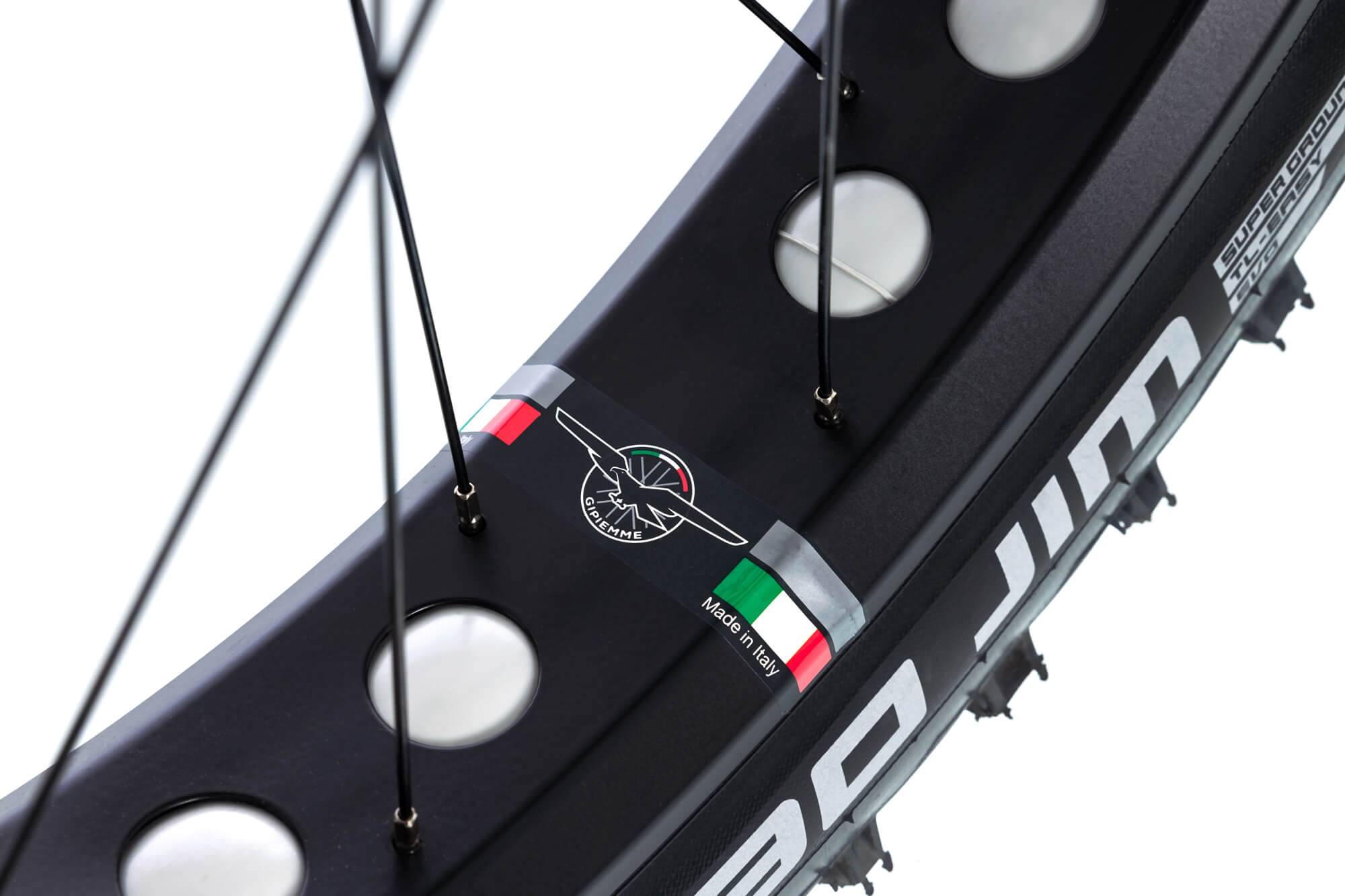

Wheels: GPM Fat

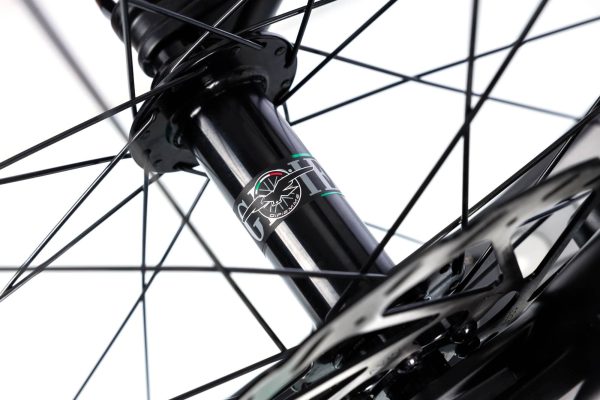

Front hub: GPM 150 mm thru-axle 15mm

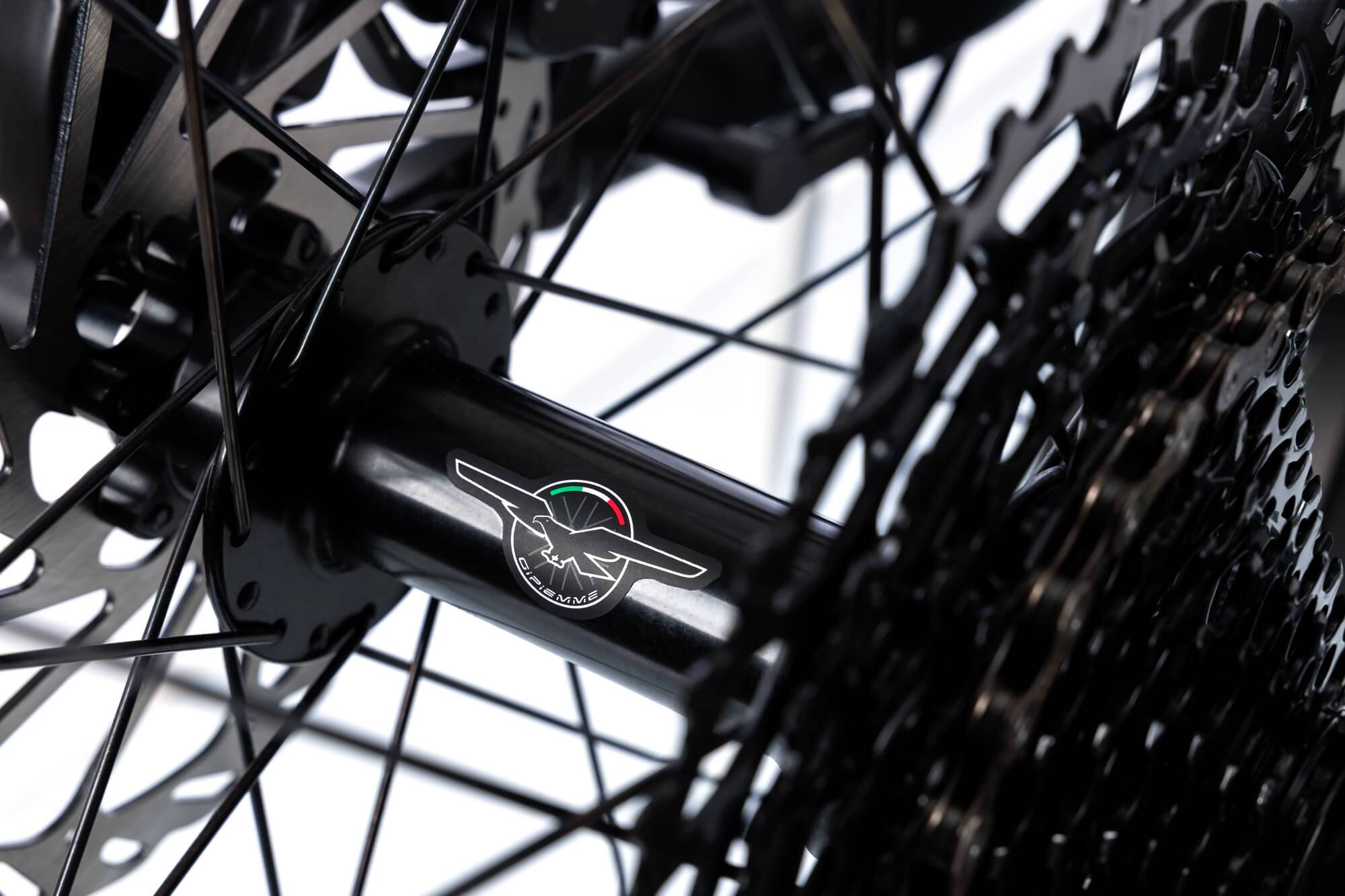

Rear hub: GPM 197 mm thru-axle 12mm
Handlebar: FSA Ø31,8 L.760m Rise15
Stem: FSA Logo Ø31,8 L.60mm
Seatpost: FSA 400mm
Saddle: SelleItalia X-Land Flow

NOTE(*): *FANTIC MOTOR reserves the right to modify technical characteristics without prior notice. All images are included for illustrative purposes. Products are subject to change.
